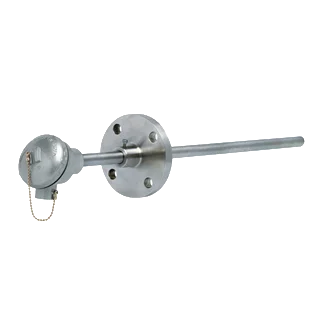

RTD WITH PROTECTING TUBE

,

Integrated Protecting Tube, Mineral insulated, Transmitter mountable, Exchangeable insert, Spring loaded design.

  • Element: Pt-100, class A/ Pt-100, class B (Others on request)
  • Wire Combination: Simplex / Duplex with 2 or 3 or 4 Wire
  • Protecting tube material: AISI 304 SS / AISI 316 SS / AISI 316L SS
  • Sheath material: AISI 316 SS / AISI 316L SS
  • Sheath Diameter: 3.0 mm to 8.0 mm (Others on request)

Interested in buying this product?
