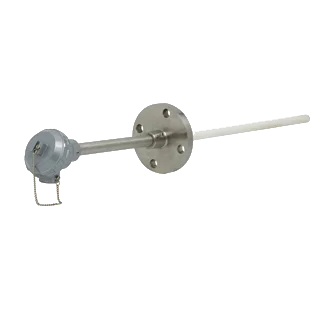

THERMOCOUPLE WITH CERAMIC PROTECTION TUBE

,

Ceramic Insulator & Protection tube, Exchangeable insert, Transmitter mountable, Adjustable / Fixed connection, Single / Double protecting tube.

  • Element: K / N / R / S / B
  • Element type: With Ceramic Insulators / Mineral Insulated
  • No. of sensors: Simplex / Duplex / Triplex
  • Protection tube material: KER – 610 / KER 710 (Others on request)
  • Sheath material: Inconel 600

Interested in buying this product?
