ALL SS STANDARD PRESSURE GAUGE

All SS measuring system, Socket-case direct welded, Dry/liquid filled

Dial size: DN100 / DN125 / DN150 / DN250
Range: -1…0…1,600 bar
Process connection: ½” NPT (M)/½” BSP (M)
Ingress protection: IP65 / IP 68
Execution: Dry / Dry but fillable, glycerin

ALL SS ECONOMICAL PRESSURE GAUGE

Dial size: DN50/ DN63 / DN80 / DN100 / DN150
Range: -1…400 bar (DN50), -1…1,000 bar (DN 63 / DN80 / DN100 / DN150)
Process connection: ¼” NPT (M) / ¼” BSP (M)
Ingress protection: IP 65 / IP 68
Execution: Dry / Dry but fillable, glycerin

ALL SS SOLID FRONT PRESSURE GAUGE

Dial size: DN100 / DN150
Range: -1…0…1,600 bar
Process connection: ½” NPT (M) / ½” BSP (M)
Ingress protection: IP 68
Execution: Dry but fillable, glycerin

ALL SS SOLID FRONT PRESSURE GAUGE

Dial size: DN63
Range: -1…1,000 bar
Process connection: ¼” NPT (M) / ¼” BSP (M)
Execution: Dry but fillable, glycerin
Ingress protection: IP 65

SOLID FRONT PRESSURE GAUGE (PHENOLIC)

Solid front with full blowback, Dry/liquid filled, Lightweight, Stabilized accuracy

Accuracy: Grade 2A (± 0.5%)
Dial size: 4.5”
Range: -1…0…1,600 bar
Process connection: ½” NPT (M) / ½” BSP (M)
Execution: Dry but fillable, glycerin, IP 65

DIFFERENTIAL PRESSURE GAUGE (SINGLE DIAPHRAGM)

All SS measuring systems, External Zero adjustment, Electric contact version, Dry/liquid filled

Accuracy: CL 1.6 & CL 2.5
Dial size: DN100 / DN150
Range: 25 mbar…0…16 bar
Process connection: ¼” NPT (F) x 2 Nos.
Ingress protection: IP 65

All SS measuring systems, Static pressure 40 bar max., External Zero adjustment, Electric contact version, Suitable for direct valve mounting

Accuracy: ±1.0 of FS (1 bar & above), ±1.6 of FS (below 1 bar)
Dial size: DN150
Range: 0…100 mbar to 0…16 bar
Process connection: ½” NPT (M) x 2 Nos.
Ingress protection: IP 65

DIFFERENTIAL PRESSURE GAUGE (PISTON)

Compact design, Migrated pressure chambers, Static pressure up to 200 bar

Accuracy: ± 2 % (Ascending)
Dial size: DN63 / DN100 / DN150
Range: 0…0.25…70 bar
Process connection: ¼” NPT (F) x 2 Nos
Ingress protection: IP 65

DIFFERENTIAL PRESSURE GAUGE (DIAPHRAGM)

Diaphragm operated, Compact design, Isolated pressure chambers, Static pressure up to 100 bar

Accuracy: ± 2 % (Ascending)
Dial size: DN63 / DN100 / DN150
Range: 0…75 mbar up to 0…4 bar
Mounting pattern: In-line connection
Process connection: ¼” NPT (F) X 2 Nos

STANDARD SWITCH CONTACT PRESSURE GAUGE

All SS measuring system, Socket-case direct welded, Liquid filled versions

Dial size: DN100 / DN150
Range: -1…0…1,600 bar
Switch: 1NO, 1NC, 1NO+1NC, SPDT, DPDT
Electrical termination: 4 pin PG 13.5 connector
Execution: Dry, IP 65

Archives: Products

Orifice Flange & Orifice Plates

Type: Welding Neck & Slip – On
Facing: Raised Face & Ring Joint
Size: 1” to 30″
Material: A | S | 304 SS / 316 SS / 316L SS / Monel 400 / Hastelloy
Pressure Taps: 2 (Standard)
Size: 1/2”, 3/4” (ANSI 300-600, 900,1500, 2500)

Coroliss Mass

Max. flow rate: 200kg/min
Wetted parts: Stainless steel 316L
Sensor housing: Stainless steel 304
Fluid temperature: -200~200°C
Temp. Accuracy: ±1°C
Operating Voltage: AC85~265V, DC24V

Thermal Mass

Medium: Gas (except acetylene)
Pipe Range: DN100-DN4000, DN10-DN2000
Velocity: 0.1~120 Nm/s
Accuracy: ±1% , ±2.5%
Working Temperature: -40℃～+220℃
Working Pressure: ≤2.5 MPa, ≤4.0 MPa

Vortex

Fluids Measured: Steam, Gases, and Liquids
Flow Range: 30:1 turndown
Liquids: 1.0 ft/s (0.3 m/s) Velocity Min. 30 ft/s (9.14 m/s) Velocity Max
Digital Communications: HART, Modbus, Profibus DP, Foundation Fieldbus, BACnet, USB, RS-232 Hazardous
Area Approvals: CE, cFMus, ATEX, PED, IECEx

Variable Area

Fluids Measured: Steam, Gases, and Liquids
Flow Range: 10:1 turndown
Accuracy: ±1.0% & ±1.5% &± 2.5%
Max. Process Temperature: 150℃ – 350℃
Nominal Operating Pressure: DN15DN50:4.0Mpa, DN65 DN200:1.6Mpa
Max. Pressure Rating: DN15:32Mpa; DN25:25Mpa; DN50:20Mpa, DN80:10Mpa; DN100:6.4Mpa, DN125 DN150:4.0Mpa

Turbine

Size & Process Connection: DN4, 6, 10, 15, 20, 25, 32, 40; Thread connection, DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200, Flange connection
Accuracy/Range ratio: ±0.5%R; 1:10; 1:15; 1:20
Sensor Material: SS304, SS316(L)
Output: Pulse, 4-20mA, HART
Power Supply: A: +24VDC, for 4-20mA , pulse, RS485 output
B: 3.6 V lithium battery, battery voltage: 2.0 V ~3.0 V

Ultrasonic Clamp On Type

Linearity: 0.5%
Repeatability: 0.2%
Accuracy: ±1% of reading at rates>0.2 mps
Response Time: 0-999 seconds, user-configurable
Velocity: ±32 m/s
Pipe Size: 20mm-6000mm

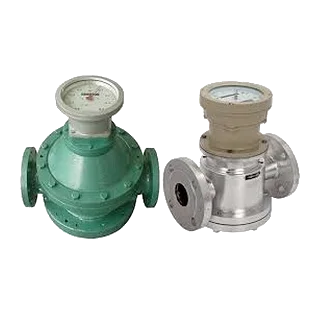

Positive Displacement

Sizes: M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80®
Max Capacity: 800 GPM / 3,028 LPM (180 M3/hr)
Max Pressure: 150 PSI / 10.3 Bar / 1034 kPa
Max Viscosity: 30-1,500,000 SSU, or 1cP to 325,000cP
Temperature Range: -40°F to 160°F

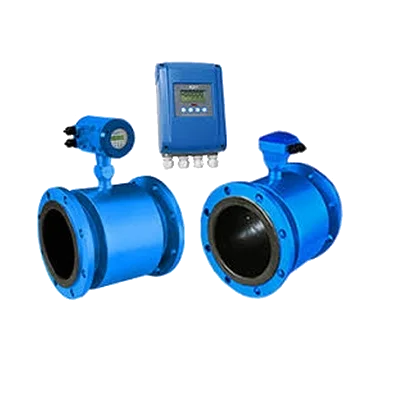

Electromagnetic – Inline / Battery Operated

Size: DN3-DN3000mm (1/8”~120”)
Accuracy: ±0.5% of reading,velocity >0.3 m/s
Velocity: 0.1-15 m/s
Signal Output: 4~20 mA, pulse HART
Power Supply: AC85~250V, DC20V~36V

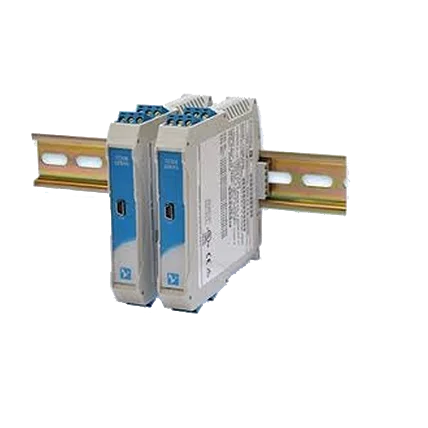

DIN Rail Mounted Temperature Transmitters

Sensor Range: -200 to 850 °C [18 to 390 Ω]
Minimum Span*¹ : 25 °C
Measurement Accuracy: ± 0.01 % FRI*³ ± 0.05 % rdg
Thermal Drift Zero: 0.008 °C/°C
Excitation Current: 300 to 550 µA
Span: 0.01 %/°C
Accuracy: (±0.1%) of Span
Maximum Lead Resistance: 50 Ω/leg
Lead Resistance Effect: 0.002°C/Ω
